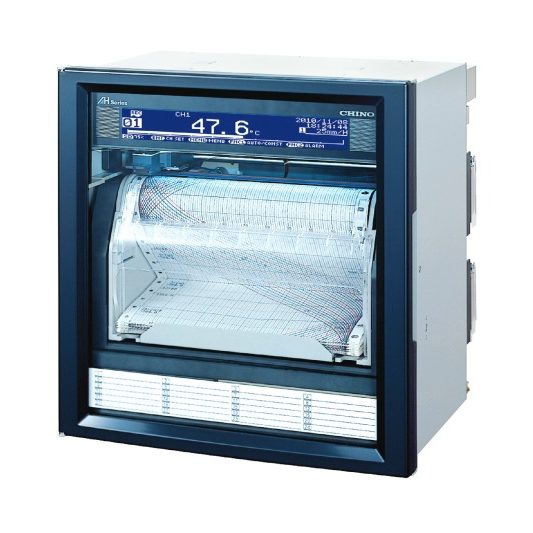

The Chino Hybrid recorder with a bright and clear easy to view LCD Display. Measuring value is prepared as 1 point display, multi point simultaneous display and digital and bar display. Features:

• Standard 12 channel (6 + 24 also available)

• Type K sockets

• Simultaneous or sequential display options

• Chart and scale illumination

• Panel mounting

• Universal input of 58 ranges of 10 DC voltage, 36 thermocouple ranges, 12 resistance thermometer ranges, all programmed from each channel

• All data can be processed and managed through a pc using compatable software

• Wire dot type 6 colour ribbon system Technical Details:

• Chart width: 180mm

• Min thermocouple: NiCr/NiAl type K

• Mains: 110V / 240V (50/60 H2)

• Dimensions (mm): 288 x 288 x 195 • Approx weight: 8kg
